- Size: 1.7*1.2*1.7
- Place of Origin: Qingdao
- Brand Name: RECI
- Model Number: RC-80GC
- Weight: 350.000 kg
USA RF laser generator, speed scanning galvanometer and expanding focusing system have the function of steady light producing, fast engraving and cutting.
With RECI anti-intervention industrial computer system, the machine can work for continuous 24 hours steadily.
Red dot position system used for accurate process positioning, to improve material utilization.
Professional software allows users to design what they want .It supports TrueType, JSF, DMF, one-dimension bar code and two-dimension bar code.
Compatible with such graphic formats as bmp, jpg, gif, tga, png, tif, vector graphics as ai, dxf, dst, plt, and various image processing function.
Users can manage control system and external device.
Multi-language is available.

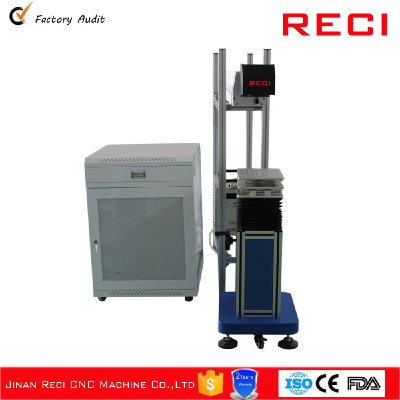

| RC-B-RF Series CO2 laser marking machine | |
| Model | RC-B20/30/50/75/100/150/200RF |
| Laser Power | 20W/30W/50W/75W/100W/150W/200W |
| Working Area | 110*110mm/210*210mm/300*300mm(option for above 90W)/400*400mm(option for above 100W) |
| Laser Wavelength | 10.64µm |
| Response Time | 0.5ms |
| Frequency of Pulse | 20HZ |
| Max.Marking Depth | 0-6mm |
| Marking Speed | 0-7000mm/s |
| Min.Line Width | 0.01mm |
| Min.Character | 0.3*0.3mm |
| Repeatability Accuracy | ±0.005mm |
| Resolution Ratio | 0.1mm |
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc |
| Unit power | below 1.2KW |
| Voltage | 220V/110V, 50HZ/60HZ |
| Cooling Method | Water Cooling |
| Net Weight | 150KG-200KG |
| Dimension | 1100*550*1350mm |
Product Uses
Available for marking
rubber
wood
bamboo products
organic glass
tile
plastic
marble
jade
crystal
other non-metal hard material
Applied to such industries as
Craft gifts
furniture
advertising signs
model marking
food packaging
electronic components
pharmaceutical packaging
printing plate
shell plate
so on.
